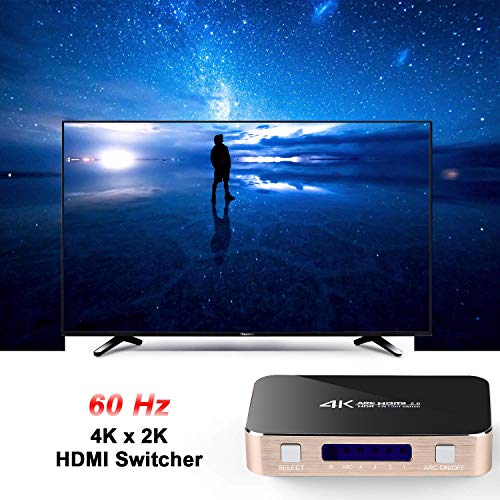

HDMI Switch, 4K@60Hz 4 in 1 Out HDMI Switcher with Optical TOSLINK SPDIF, 3.5mm Audio Jack Support ARC Function, 3D, 1080P @120Hz, 4Kx2k @60Hz HDTV (IR Wireless Remote Control)
Description
- Newest4 Input 1 Output 4K@60Hz HDMI Switch: This HDMI switch supports HDR (4:2:0 YUV Format), HDCP1.4, HDMI 2.0, can easily select 4 HDMI sources that scale up to 4K@60Hz to a single HDMI output which your want to. The HDMI Switcher support 12bit per channel(48bit all channels)Deep Color, Supports MHL function(HDMI input3 port) and LED indicator, Support ARC function. You can select output by a local button or a IR wireless remote control.
- Optical TOSLINK and 3.5mm Audio Interface: HDMI Switch supports ARC function (Audio Return Channel and audio is available from the TOSLINK Output that you can enjoy a high audio quality); This HDMI Switcher Supports different compressed audio format: Dolby, DTS-HD and also supports Blu-ray 2.1 / 3.1 / 4.1 / 5.1 / 6.1 / 7.1 / 8.1 / 9.1 home theater audio.
- Wide Device Compatibility and Ultra HD Resolution: This 4 port HDMI switch can compatible with partly HDMI device such as fire Stick, Apple TV, LE TV, PS3/ 4/ 5 Vedio Games, Macbook, VCD/ DVD Plyer, IP TV, STB, Media Box, Camera, Xbox360, Xbox one, Huawei Box, MIUI Box, Smart Box, Blue-ray Player Chromecast, PC/Computer, YUV 60Hz, RGB 30Hz, ROKU 4, Wii U, SAT Receiver, Digital camera, Projector Tivo, Vizio.This 4K 60Hz HDMI Switch supports Ultra HD resolution，can work for standard HDMI V2

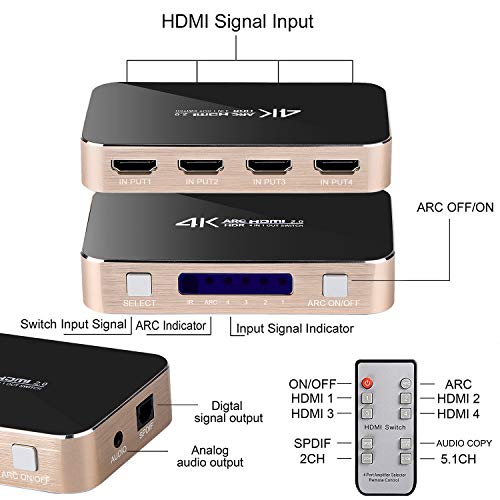

- Auto-Switch with Remote Control: This Switch has a pre-programmed automatic switch program.when any signal source is disconnected(NOTE:disconnect means you should unplug HDMI cable,not turn source off),it will automatically skip to the next port with a viable signal source;It will automatically skip to the most recently inserted HDMI signal source (Tips:It will not allows auto-switch to the PS4/xbox due to current protection principle). The remote IR control should not over 6 meters. And HDMI in

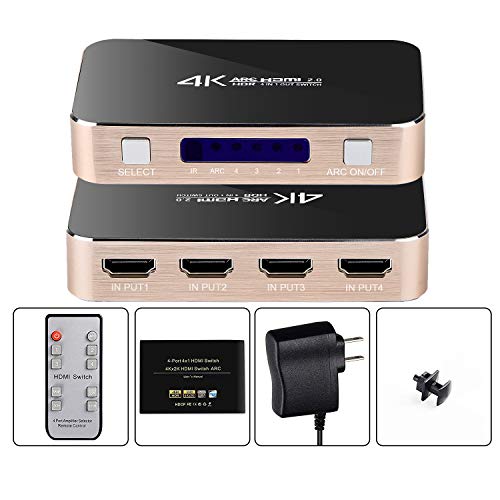

- What You Get: 4x1 HDMI switchx1, 5V DC Power Adaptor x1, Remote Control x1,User Manual x1. Wonlyus offers a full 30 day 100% money back guarantee and 365 days warranty, please contact us if you have any problems and we will respond in 24 hours.
Color:HDMI Switch HDMI Switch, 4K@60Hz 4 In 1 Out HDMI Switcher with Optical TOSLINK SPDIF, 3.5mm Audio Jack Support ARC Function, 3D, 1080P @120Hz, 4Kx2k @60Hz HDTV (IR Wireless Remote Control) This HDMI Switch supports 4 HDMI Inputs to 1 HDMI Output with a IR wireless remote control or a local select button, allowing you enjoy your perfect HDTV picture. And it supports digital and analog sound simultaneous or split. It must be the best choice of your Home Theater system. Product Features: 1.Support ARC functions 2.Support optical audio separation lossless transmission 3.Support compressed audio; DTS digital, Dolby digital (DTS-HD and DOLBY) 4.Support high-resolution input: 480P/ 576P/ 720P/ 1080P/ 1080p 3D/ 4K@60Hz, HDMI V2.0, HDCP V1.4, HDR 4K*2K 5.Compatible with HDTV which support HDMI and HDCP 6.Each port supports HDMI protocol input 7.Support video transmission: 3Gbps/ 300MHZ 8.Support high-definition signal with remote control 9.Support automatic identification of the signal source Product Specifications: Input port: 4 HDMI input Output port: HDMI Output, 3.5mm Audio Port, TOSLINK Input Power Port: DC 5V/1A Power Port LED Indicator: 1 Power LED Indicator, 4 HDMI Select Indicator, 1 ARC Indicator, 1 IR Indicator Color: Gold-Black Package Includes: 1 x HDMI Switch 1 x IR remote control 1 x Power Adapter 1 x Uuse Manual Note: 1: It is better to connect 4 HDMI input ports at the same time while apply on TV. If there is no sound when connect others HDMI inputs, please restart this HDMI device. 2: TOSLINK does not support Dolby Digital plus, please change the input source's audio output to a different setting, if needed. 3: If using TOSLINK cable, please make sure the rubber protective tip cover has already been removed from both ends before connec
Reviews
J**.
Good features, difficult form factor.
Lots of features packed into a tiny box. Feels solid. It's great to have audio outs. Switching HDMI is still dodgy. I often lose the audio when switching, requiring a reset. This is NOT the fault of the box, but the HDMI protocol. The big problem for me is the placement of the ins and outs. The HDMI output is on the side of the box, which means you can't put it next to anything else, because the HDMI connector and cable stick out so far. Also you can't use a right angle HDMI connector to solve this because the power connector is right next to the HDMI, and will interfere. For me, a larger box with connectors on the back would be better, neater.
L**C
Works very well. I have only two HDMI inputs ...
Works very well. I have only two HDMI inputs on my TV and I need a couple of more for some other peripherals. I cannot see any degradation of the picture of sound using this spliter.
J**N
Works as described.
Audio jack was a little tight. At first, I only produced buzzing sound, but then I figured out the 3.5mm cable was not inserted all the way in. Applied some pressure and it snapped right in. Item now works just as advertised. Perfect solution to have all my son's HDMI devices play through his soundbar. Would recommend this device to others.
D**R
Worthless. Save your money or go to Best Buy instead.
I just tried to install this and it isn't working. I followed the instructions and everything seems to be working as expected, but as soon as I plug an HDMI cable into the output port, the LED indicator light for whatever input I'm trying to use starts blinking. If I take the input HDMI cable out and plug it into the TV it works perfectly fine, so it's not a problem with my cables. Once an output cable is plugged into the device, it does nothing. Unless someone from the supplier can help me fix this, it's worthless. And I don't believe there's even an option to return/switch with a new one. Stay away from this product.
E**C
Full RGB for PC
Initially this device seemed like it would do everything I needed. Aside from some random image noise quirks that went away after I stopped moving things around everything seemed ok on both a mac mini and custom made PC. Unfortunately I noticed right away that there was rainbow coloration all over wherever there was text. This normally indicates an incorrect color setting and sure enough no matter what I tried the device would not put out RGB at 60hz. For computers this is a deal breaker especially since the need was for critical work. Everything else worked fine and the remote was extremely responsive so if it only allowed the Full RGB I would be buying a second for my other dual computer setup. Unfortunately the search continues.
A**R
does not auto-switch to active device
Note: does NOT automatically switch to active input device as advertised. Automatically uses input 2 unless manually switched. Otherwise functions perfectly.
N**E
Doesn't appear to actually do anything?
I bought this to extract the audio from the HDMI stream. I plugged in the audio jack, connected the HDMI ports. And... the audio was not extracted. Audio went from HDMI to HDMI. I tried all 3 settings Pass, 2.1, and 5.1. Nothing changed on any setting. It still went from HDMI to HDMI. There seems to be no reason to have the audio port, because it doesn't do anything.
C**.
Small effiecent unit
I am not using the audio out but only the HDMI ports for switching several devices for display on my tv. Unitworlks great and has small footprint.
